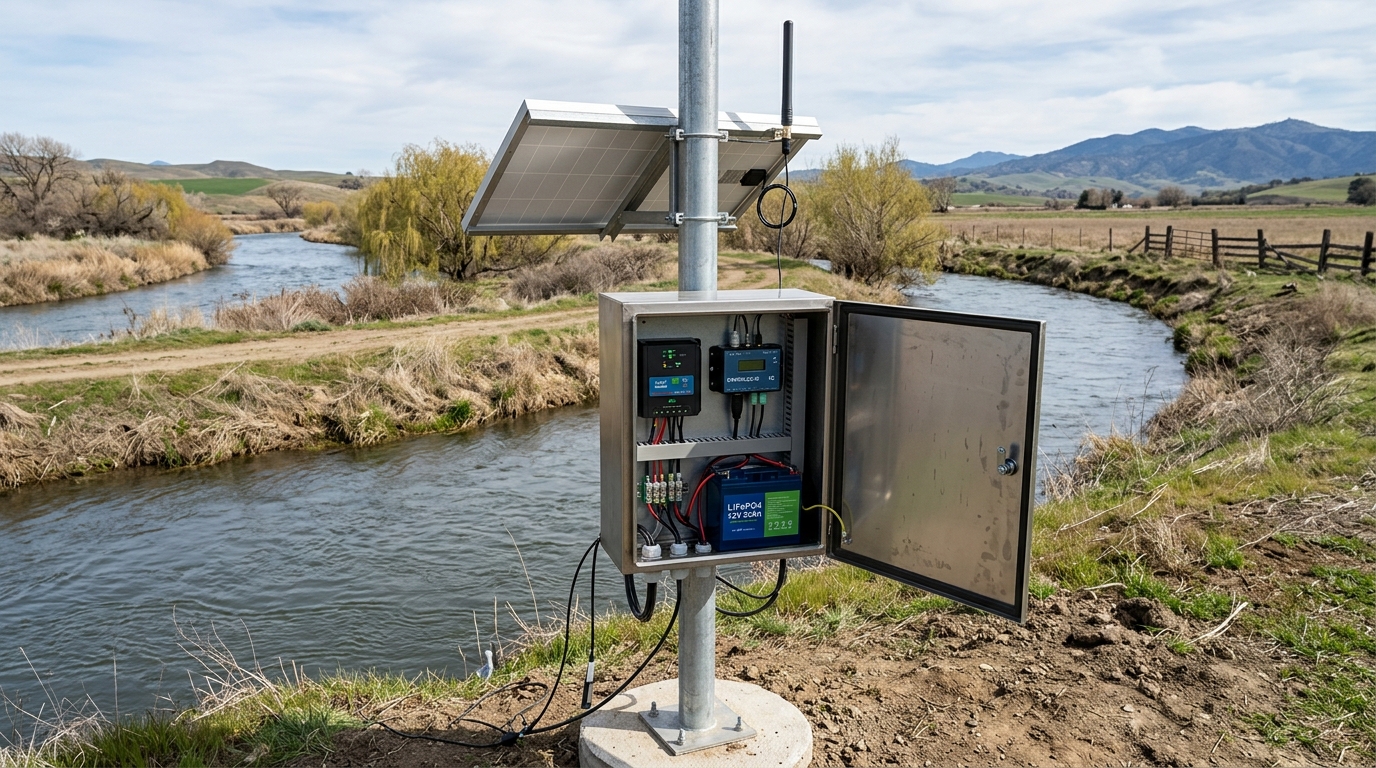

Deploying off-grid solar-powered datalogger cabinets for groundwater wells and remote hydrological monitoring stations is an indispensable engineering solution when extraction points or monitoring boreholes are located far from 220VAC power lines. Designing a solar telemetry station that functions reliably 24/7 requires rigorous engineering calculation: sizing photovoltaic panels and Lithium Iron Phosphate (LiFePO4) storage batteries to survive 5 to 7 consecutive days of overcast monsoon weather while withstanding harsh outdoor temperatures and tropical lightning storms.
This technical guide is part of DeviceLab's comprehensive engineering handbook on automated groundwater and surface water monitoring.
Across forestry plantations, agricultural farms, hydropower river basins, and open-pit mining concessions in Vietnam, many off-grid solar cabinets fail prematurely after just 6 months. Common reasons include: deploying power-hungry industrial PCs that rapidly deplete batteries, choosing cheap lead-acid batteries that degrade in summer heat, or using consumer solar charge controllers that lack transient surge protection. This comprehensive technical guide details power consumption comparisons, exact solar sizing formulas, thermal IP66 cabinet design, and off-grid integration using the DeviceLab DL-ENV10 Datalogger.
Standard Off-Grid Solar Telemetry Specifications:
- Average Continuous System Power: Under $1.2W – 1.8W$ (including DL-ENV10 datalogger, 4G cellular transmission, and active level sensor).
- Autonomy Reserve Duration: Minimum 5 to 7 continuous days of operation in complete zero-sunlight overcast conditions.
- Recommended Battery Technology: Lithium Iron Phosphate ($LiFePO_4$ 12.8V 30Ah–50Ah) with intelligent Battery Management System (BMS) rated for $ge 3,500$ charge cycles.
- Photovoltaic Module: 100W – 150W Monocrystalline solar panel with heavy-duty anti-wind anodized aluminum frame.
- Datalogger Telemetry Unit: DeviceLab DL-ENV10 with ultra-low power ARM architecture, automated power-saving sleep modes, and direct DC input (9–36VDC).
📑 Table of Contents
Power Consumption Audit: Industrial PC (IPC) vs. Embedded DL-ENV10
The primary reason most off-grid solar monitoring projects fail is an excessively high power budget. Choosing the wrong central processing hardware inflates solar capital costs exponentially:
| Technical Feature | Windows Industrial PC (IPC) + 4G Router | Embedded DeviceLab DL-ENV10 Datalogger |
|---|---|---|
| Continuous Operating Power | 25W – 45W | 0.8W – 1.5W (95% energy reduction) |
| Daily Energy Consumed ($E_{day}$) | 600 Wh – 1,080 Wh / day | 28.8 Wh – 36 Wh / day |
| Required Solar Panel Array | 400W – 600W (Heavy, large footprint, high wind load) | 50W – 100W (Compact 0.5m² panel) |
| Required Battery Bank (5 Days Autonomy) | 12V 400Ah (Huge weight > 100kg, expensive) | 12.8V 30Ah LiFePO4 (Compact, weighs only 3.8kg) |
| Solar Subsystem Capital Cost | 45,000,000 – 65,000,000 VND | 8,500,000 – 14,000,000 VND |
Mathematical Sizing Formulas for Solar Panels & LiFePO4 Battery Banks
To design an off-grid station with guaranteed reliability, follow this 3-step calculation:
2.1. Step 1: Calculating Daily Energy Consumption ($E_{day}$)
With the DL-ENV10 and a submersible 4–20mA hydrostatic level sensor operating continuously: $P_{avg} = 1.25W implies E_{day} = 1.25W imes 24h = 30.0 Wh/day$.
2.2. Step 2: Sizing Storage Battery Capacity ($C_{bat}$) for 5-Day Autonomy
To survive $N = 5$ consecutive days of rain, with maximum Depth of Discharge ($DoD = 80%$) and battery efficiency ($eta_{bat} = 95%$):
Substituting values: $C_{bat} = rac{30.0 imes 5}{12.8 imes 0.80 imes 0.95} = rac{150}{9.728} pprox 15.4 Ah$. To ensure conservative safety margins, engineers deploy a standard 12.8V 30Ah LiFePO4 pack, providing up to 9.8 days of total autonomy!
2.3. Step 3: Determining Required Solar Panel Wattage ($P_{solar}$)
Accounting for solar irradiance in northern/central Vietnam during winter ($T_{peak} pprox 3.0 peak sun hours/day$) and system losses ($eta_{sys} = 75%$):
$P_{solar} = rac{30.0}{3.0 imes 0.75} = 13.3W$. Deploying a standard 100W Monocrystalline solar panel generates 7.5x the minimum required power, ensuring the battery bank fully recharges within just 2 hours of direct sunlight.
Thermal IP66 Enclosure Engineering & Standalone Grounding Protection
Outdoor solar cabinets in tropical environments face extreme solar heating ($> 55^circ C$ internal temperatures) and direct lightning exposure:
- Dual-Layer Sunshade Roof Design: Outdoor IP66 enclosure equipped with a vented dual-roof canopy that blocks 90% of direct radiant solar heat, keeping internal battery cells within safe operating temperatures ($< 45^circ C$).
- Dedicated MPPT Solar Controller: Regulates battery charge cycles with high-precision temperature compensation and integrated reverse-polarity protection.
- Equipotential Grounding Grid: The galvanized steel solar mounting pole must be bonded to a 3-rod copper grounding grid achieving ground resistance $R_{ground} < 4 Omega$, shunting lightning currents safely into deep soil.
