2-Wire, 3-Wire & 4-Wire 4–20mA Sensor Wiring to Dataloggers & PLCs: Ground Loop & Noise Guide

In industrial manufacturing plants, municipal water pumping stations, groundwater monitoring wells, and CEMS/wastewater telemetry stations, the physical cable routing distance from the primary sensing element (submerged 80 meters down a borehole well, mounted high on a boiler exhaust stack, or installed at an outdoor effluent discharge channel) back to the central Datalogger/PLC cabinet routinely spans 50 meters to over 500 meters. If an engineer attempts to transmit an analog voltage signal (such as 0–5VDC or 0–10VDC) over long copper runs, the intrinsic resistance of the copper conductors ($R_{wire}$) combines with input bias currents to produce a significant Ohm's Law voltage drop ($V_{drop} = I \times R_{wire}$), corrupting measurement accuracy at the cabinet.

By contrast, the industrial 4–20mA Current Loop completely eliminates long-distance attenuation based on three fundamental electrical engineering principles:

1. Zero Line-Resistance Attenuation (Kirchhoff's Current Law): According to Kirchhoff's Current Law (KCL), the electrical current flowing through every point of an unbranched series loop is 100% identical ($I_{transmitter} = I_{receiver}$). Whether the twisted-pair cable is 5 meters or 800 meters long, the active current regulator inside the transmitter dynamically adjusts its output compliance voltage so that the exact current proportional to the process variable flows through the Datalogger's shunt resistor.
2. Superior Electromagnetic Interference (EMI) Rejection: A low-impedance current loop terminated into a 100Ω to 250Ω shunt resistor requires orders of magnitude more induced magnetic energy from nearby contactors and VFDs to disturb the reading compared to a high-impedance (>10MΩ) voltage input antenna.
3. Built-In Wire-Break & Fault Diagnostics via "Live Zero" (4.00mA Baseline): The entire 0% to 100% physical engineering span is mapped into the 4.00mA to 20.00mA window (a 16.00mA active span). The current band from 0.00mA to 3.60mA is reserved for hardware fault diagnostics (standardized under NAMUR NE43): whenever the Datalogger measures 0.00mA, the firmware immediately flags a "Sensor Wire-Break or Power Loss Fault (Status Code 02)" rather than falsely logging a 0.0 bar pressure or 0.0 m³/h flow rate!

The single most common commissioning error made by field technicians when wiring a Datalogger or PLC cabinet is assuming all 4–20mA terminals behave identically. In reality, industrial sensors fall into 3 distinct electrical loop topologies that must be identified before energizing the terminal strip:

Quick Field Identification Matrix Across 2-Wire, 3-Wire, and 4-Wire 4–20mA Sensors:

Technical Attribute	2-Wire Transmitter (Passive / Sinking)	3-Wire Transmitter (Semi-Active Sourcing)	4-Wire Analyzer (Active Self-Powered)
Instrument Power Source	Parasitically powered from the series 24VDC current loop itself (draws < 3.5mA quiescent current).	Powered via dedicated +24VDC and 0V supply wires; shares 0V return with the signal output.	Powered via independent 220VAC or 24VDC power terminals completely separate from the 2 signal leads.
Electrical Nature of 4–20mA Port	Passive (Current Sinking): Modulates loop impedance; cannot generate voltage on its own.	Sourcing (Common Return): Drives 4–20mA out of the Signal wire returning via the 0V power wire.	Active Current Source: Internally generates loop voltage and pumps 4–20mA out of I+ / I-.
How to Verify with a Handheld Multimeter (DMM)	Unpowered across its 2 leads measures 0V / 0mA. Must be wired in series with +24VDC to read 4–20mA.	Apply 24VDC to power leads; set DMM to mA mode between Signal Out and 0V to read 4–20mA directly.	Power on the analyzer; touch DMM probes (in mA mode) directly across I+ and I- to read 4–20mA.
Typical Industrial Field Devices	Pressure transmitters (Danfoss, Keller, Wika), submersible borehole level sensors, head-mount PT100 transmitters.	Ultrasonic level transmitters, combustible/toxic gas detectors, industrial duct humidity transmitters.	Electromagnetic flowmeters (Siemens, Krohne, ABB), online pH/COD/TSS/DO/Ammonia water quality analyzers.

Many environmental and automation engineers encounter a baffling symptom on site: when a single 4–20mA sensor is wired into the Datalogger or PLC, the reading is rock-solid; however, the moment a second or third 4-wire analyzer is connected—or whenever a wastewater pump VFD ramps up to 50Hz—the pH, flow, and water level readings jump erratically by 10% to 40%.

3.1. The Physics Behind Multi-Channel Analog Ground Loops

On the vast majority of standard PLCs and un-isolated dataloggers, the negative return terminals of all analog input channels (AI0-, AI1-, AI2-, AI3-) are tied together on the PCB onto a shared AGND (Analog Ground) copper plane, which is also internally bonded to the 0V rail of the 24VDC cabinet power supply. Meanwhile, out in the plant, the metallic body of an electromagnetic flowmeter (bolted to steel pipeline A) and a wastewater pH/COD analyzer electrode (submerged in concrete basin B 80 meters away) sit at different earth potentials ($\Delta V_{ground} = 1.5\text{V to } 5.0\text{V}$) caused by stray earth-leakage currents from heavy pump motors and aerator blowers. When both negative signal wires are landed onto the shared AGND terminal bar of the Datalogger, a parasitic ground-equalizing current ($I_{ground\_loop}$) flows directly through the negative signal wires and across the ADC shunt resistors, adding or subtracting milliamps from the true 4–20mA measurement!

3.2. The 100% Permanent Engineering Cure: Per-Channel Galvanic Isolation + Single-Point Shielding

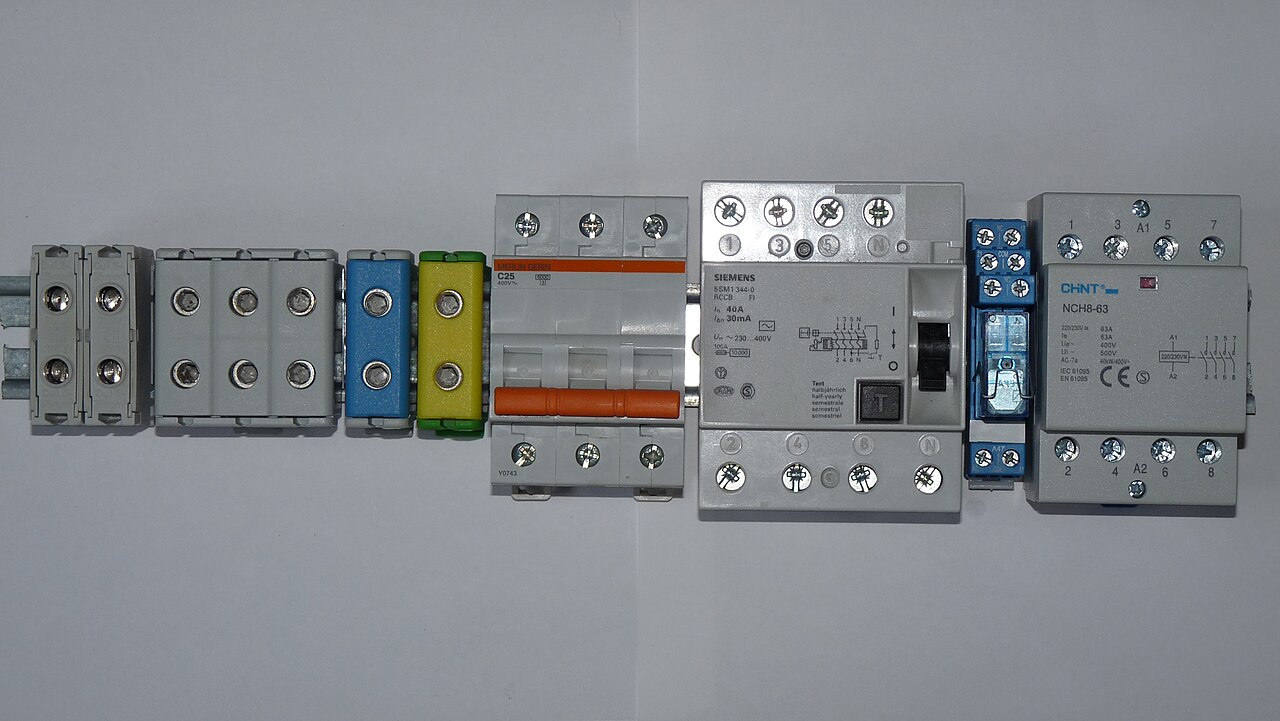

• Install 1.5kV–3.0kV DIN-Rail 4–20mA Galvanic Signal Isolators (Loop Isolators): For every 4-wire active instrument (electromagnetic flowmeters, online COD/pH/TSS/Ammonia analyzers, and CEMS gas cabinets), always interpose a 3-way galvanically isolated DIN-rail signal conditioner (1-in-1-out or 1-in-2-out isolator using internal transformer/optical coupling) between the field cable and the Datalogger AI port. This completely breaks the DC ohmic path between field earth and cabinet AGND, eliminating 100% of ground-loop drift.
• 3-Stage Hardware Protection Inside DeviceLab Dataloggers: On the DeviceLab DL-ENV10 Datalogger and DL-M400 IoT Module, every 4–20mA input channel incorporates a dedicated 3-stage front-end protection network: a 50mA PTC Resettable Fuse (preventing shunt burnout if a technician accidentally connects +24VDC across AI+/AI-) → a 600W Bi-Directional TVS Surge Diode → a Differential RC Low-Pass Filter (with cutoff frequency $f_c = 15\text{Hz}$ to attenuate 50Hz mains hum and kHz VFD PWM switching noise) feeding a high-resolution Sigma-Delta ADC.

When the regulated loop current $I\text{ (mA)}$ passes through a precision shunt resistor $R_{shunt}$ (for example, $R_{shunt} = 120\Omega$ or $250\Omega$ with $\pm 0.1\%$ tolerance and $25\text{ppm}/^\circ\text{C}$ temperature stability), the resulting voltage across the ADC input is $V_{adc} = I \times R_{shunt}$. The embedded microcontroller samples the digital counts, applies a moving-average digital filter, and executes linear engineering interpolation combined with NAMUR NE43 fault thresholds and Circular 10 status codes (00 = Normal, 01 = Calibration, 02 = Sensor Error) as demonstrated in the reference Python code below:

def scale_4_20ma_sensor(current_ma: float, lrv: float, urv: float, cal_mode: bool = False) -> dict:
    """
    Converts a 4-20mA loop current reading into physical engineering units with NAMUR NE43
    wire-break diagnostics and MONRE Circular 10/2021 status code tagging (00 / 01 / 02).
    - lrv: Lower Range Value (Engineering value at 4.00 mA, e.g., 0.0 m3/h or 0.0 pH)
    - urv: Upper Range Value (Engineering value at 20.00 mA, e.g., 250.0 m3/h or 14.0 pH)
    """
    if cal_mode:
        # Station technician activated Calibration / Maintenance switch
        clamped_ma = max(4.0, min(20.0, current_ma))
        val = lrv + ((clamped_ma - 4.0) / 16.0) * (urv - lrv)
        return {"value": round(val, 2), "status": "CALIBRATION_01", "ma": round(current_ma, 3)}

    if current_ma < 3.60:
        # Open circuit, severed field cable, blown loop fuse, or dead transmitter PSU
        return {"value": None, "status": "ERROR_WIRE_BREAK_02", "ma": round(current_ma, 3)}
    if current_ma > 21.00:
        # Sensor over-range saturation or short-circuit to +24VDC supply rail
        return {"value": None, "status": "ERROR_OVER_RANGE_02", "ma": round(current_ma, 3)}

    # Smooth clamping within the normal measurement deadband [3.8mA..4.0mA] and [20.0mA..20.5mA]
    clamped_ma = max(4.0, min(20.0, current_ma))
    ratio = (clamped_ma - 4.0) / 16.0
    eng_value = lrv + ratio * (urv - lrv)

    return {
        "value": round(eng_value, 2),
        "status": "NORMAL_00",
        "percent_span": round(ratio * 100.0, 1),
        "ma": round(current_ma, 3),
    }

Modern process analyzers and flowmeters (such as electromagnetic flowmeters, submersible level probes, and multi-parameter water quality transmitters) frequently offer both 4–20mA Analog and RS485 Modbus RTU outputs side by side. The engineering trade-off matrix below helps project engineers select the optimal interface:
