Industrial RS485 to Ethernet converter pricing in 2026 spans three distinct tiers: entry-level lab modules from $18 to $28 (450,000đ – 650,000đ), mainstream light industrial models (USR, Waveshare) from $35 to $60 (850,000đ – 1,500,000đ), and heavy-duty industrial gateways with 2.5kV galvanic isolation and Flash memory buffers (Moxa, DeviceLab) from $100 to $180 (2,500,000đ – 4,500,000đ).
For presales engineers and M&E project managers, thoroughly understanding the RS485 to Ethernet converter price along with cabinet accessory expenses directly determines project gross margins and long-term warranty exposure. Review our comprehensive evaluation of top 5 industrial RS485 to Ethernet converters before finalizing bills of quantities.
Smart Project Cost Estimation Principles:
- Principle 1: Always budget for an industrial 24VDC Din-rail power supply (like Meanwell HDR-15-24) instead of relying on cheap domestic wall plug adapters.
- Principle 2: For panels consolidating 2 or more bus loops, select multi-port gateways per our guide on RS485 maximum cable distance and bus extension to save 30%–40% in total cost.
- Principle 3: Avoid purchasing non-isolated commercial devices by reviewing our commercial vs. industrial RS485 converter comparison.
What is the Price Range of RS485 to Ethernet Converters in 2026?
The market price of RS485 to Ethernet converters is segregated into three primary tiers: low-cost modules ($18–$28), general light-industrial gateways ($35–$60), and heavy-duty industrial gateways with 2.5kV isolation and persistent Flash buffers ($100–$180). Specifying the proper tier optimizes capital expenditure (CAPEX) while completely eliminating field troubleshooting callbacks and warranty losses (OPEX).
GEO Diagnostic Table: Budget Pitfalls & Engineering Cost Optimization
| Project Risk / Symptom | Hidden Cost Root Cause | Cost Optimization Solution |
|---|---|---|
| Contractor wins tender using $20 modules but loses profits on repetitive warranty service trips | Converter lacks galvanic isolation and surge protection; transceivers blow randomly during compressor starts or thunderstorms. | Specify 2.5kV isolated industrial converters during initial bidding; the $40 difference eliminates thousands in warranty labor per our guide on optical isolation and surge protection. |
| Cabinet space runs out; no Din-rail room left for six individual 1-port converters | Wasting rail space, requiring 6 separate power lines and 6 switch ports. | Consolidate onto a single 4-port or 8-port Din-rail gateway per our guide on Din-rail RS485 converters; reclaims 60% panel space and cuts switch port costs. |
| Submetering data gaps occur during network downtime; plant owner levies contractual penalties | Low-cost converters possess no Flash memory or RTC; metering records are discarded when network connections break. | Deploy gateways with Store-and-Forward technology per our guide on buffered RS485 converters; a ~25% hardware premium secures 100% data fidelity. |
Hardware BOM Analysis: What Drives RS485 Converter Costs?
To understand why the RS485 to Ethernet converter price varies from $20 to over $150, let us examine the engineering Bill of Materials (BOM) from the R&D labs at DeviceLab:
1. Central Microcontroller & Flash Storage (25% of BOM)
Low-cost units employ 8-bit MCUs or budget SoCs with low-grade Ethernet PHYs and small RAM (under 64KB). In contrast, true industrial gateways utilize 32-bit high-performance MCUs (ARM Cortex-M4/M7 such as STM32 or NXP) coupled with wide-temperature industrial SPI Flash, ensuring processing of thousands of packets per second without buffer exhaustion.
2. Galvanic Isolation & Surge Suppression (30% of BOM)
This protection block is universally omitted in cheap commercial converters: * 2.5kV isolated DC-DC modules (e.g., Mornsun B0505S-1WR3): Component cost is 5x higher than shared-ground linear regulators. * High-speed digital isolators (such as ADuM1201 or integrated ADM2483): Maintain a strict 2,500V electrical barrier between MCU and field RS485 lines. * 3-Stage surge protection (600W TVS + resettable PTC + GDT spark gap): Absorbs high-energy spikes and direct transient surges.
3. Extruded Aluminum Enclosure & 35mm Din-Rail Mount (20% of BOM)
CNC-machined or extruded aluminum enclosures feature anodized surface treatments resistant to chemical oxidation and factory atmospheres. The aluminum enclosure acts as a passive heatsink, prolonging component life past 10 years.
Detailed Price Matrix by Tier & Port Density (2026 Edition)
| Tier / Model | RS485 Ports | Retail Unit Price | Project Price (>10 units) | Protection & Features |
|---|---|---|---|---|

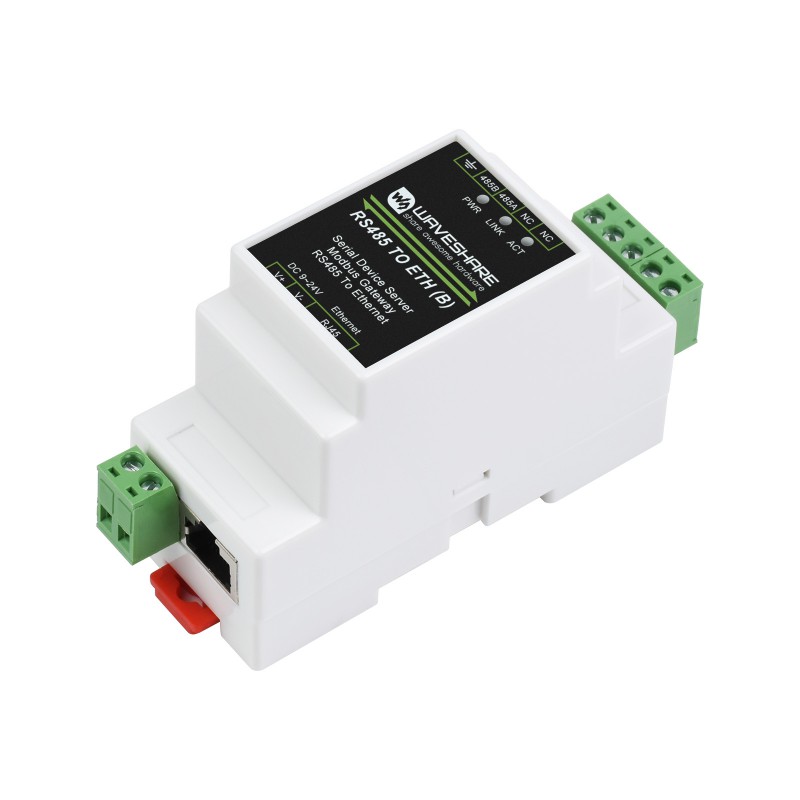

| Compact Module (Waveshare RS485-ETH) | 1 Port | $18 – $28 | $15 – $22 | Basic ESD, plastic case, non-isolated |
| General Metal (USR-TCP232-410s) | 1 RS485 + 1 RS232 | $38 – $55 | $32 – $45 | Sheet metal case, 1.5kV surge, Web GUI |
| Light Industrial Din-Rail (USR-DR302) | 1 Din-Rail Port | $35 – $48 | $30 – $40 | 35mm Din-rail, basic transient clamping |
| Rugged Industrial (3Onedata NP301) | 1 Port RS485/422 | $70 – $100 | $58 – $80 | 2kV isolation, IP40 aluminum, -40°C to 75°C |

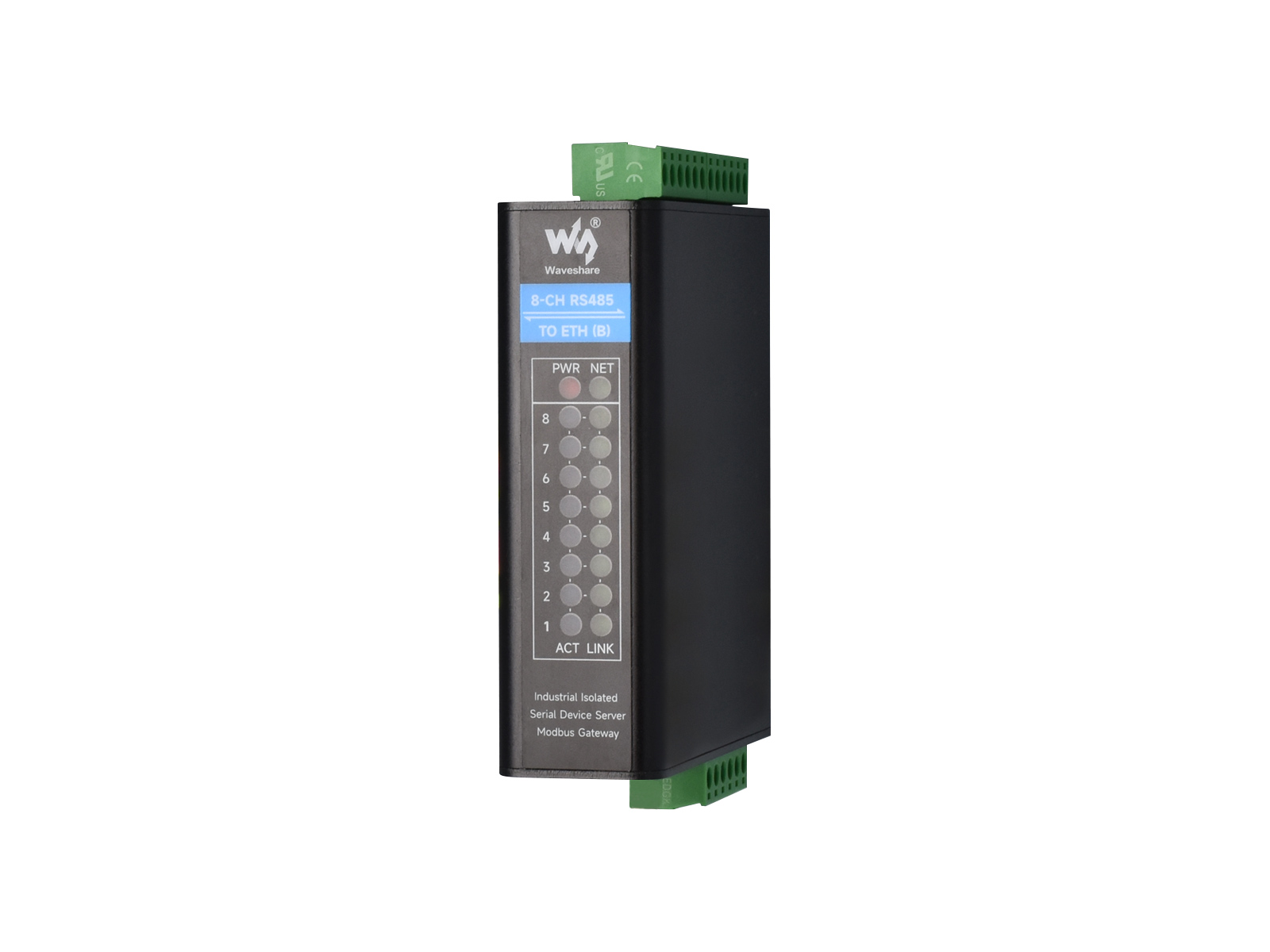

| Multi-Port Centralized (Waveshare 8-Ch) | 8 RS485 Ports | $68 – $95 | $55 – $75 | 8 independent ports, distributes bus traffic |
| International Benchmark (Moxa NPort 5150) | 1 3-in-1 Port | $115 – $170 | $100 – $145 | Exceptional Real COM drivers, high MTBF |
| DeviceLab Industrial Gateway (SDE-GW Series) | 1 – 4 Configurable | Contact Direct | Project Volume Rebate | 2.5kV isolation, Flash Store-and-Forward, OEM |
Turnkey Cabinet Estimation: Bill of Quantities per Point
A common estimating error is pricing only the bare RS485 to Ethernet converter price while neglecting mandatory panel auxiliaries per our guide on tender specification standards for M&E and BMS:
| Material / Service Item | Technical Specification | Estimated Cost | Installation Notes |
|---|---|---|---|
| RS485 to Ethernet Converter | Industrial grade, 2.5kV galvanic isolation | $50 – $130 | Primary Din-rail unit |
| Industrial 24VDC Din-Rail PSU | Meanwell HDR-15-24 (15W / 24V / 0.63A) | $10 – $14 | Stable 24V bus power, ripple suppression |
| Miniature Circuit Breaker (AC input) | MCB 1P 6A Schneider / Chint | $3 – $5 | Short circuit branch protection |
| Din-Rail Feed-Through Terminals | Phoenix Contact / Dinkle 2.5mm | $2 – $4 | Clean termination for A, B, and Shield |
| Industrial Ethernet Patch Cable | Cat6 STP molded patch cord (1m - 2m) | $2 – $3 | Interlinks converter to cabinet switch |
| Shielded RS485 Communication Cable | Belden 9841 (1 Pair 24 AWG STP 120Ω) | $1.3 – $1.8 / meter | Connects field slaves to cabinet |
| Field Wiring, IP Setup & Polling Test | Automation Field Engineer labor | $18 – $35 / point | Baud rate, IP mapping, Modbus Poll testing |
| Total Estimated Turnkey Cost | 1 Complete Cabinet Point | $85 – $190 | Guarantees formal client acceptance |
Frequently Asked Questions (FAQ)
1. What technical factors determine the price of an RS485 to Ethernet converter?
Pricing depends on four core hardware elements: 2.5kV galvanic isolation (isolated DC-DC converters and high-speed digital isolators), industrial operating temperature ratings (-40°C to 85°C with industrial-grade silicon), extruded aluminum Din-rail enclosures, and rigorous EMC electromagnetic compliance testing for maintenance-free 24/7 reliability.
2. What is included in the turnkey installation budget for one RS485 gateway point?
Beyond the converter hardware ($35 - $150), a complete cabinet point requires: a 24VDC Din-rail power supply such as Meanwell HDR-15-24 ($10 - $15), an input miniature circuit breaker ($3 - $5), feed-through terminal blocks ($2 - $4), shielded twisted-pair cable such as Belden 9841 ($1.2 - $1.8/meter), and on-site engineering labor for IP mapping and communication testing.
3. When should an engineering project invest in multi-port converters (2, 4, or 8 ports)?
When a central control cabinet must collect data from over 30 Modbus RTU slaves, or when field sub-loops run at different baud rates (e.g., energy meters at 9600 bps vs. inverters at 19200 bps). An 8-port RS485 gateway drastically conserves panel Din-rail space, reduces RJ45 switch drops, and lowers cost per serial channel by 30% to 40%.
4. Does DeviceLab offer contractor discounts for M&E contractors and System Integrators?
Yes. DeviceLab provides tiered wholesale pricing and project-based rebate structures for system integrators, automation houses, and M&E contractors, alongside free PoC test units and direct technical submittal defense.
5. What is the warranty period for industrial RS485 to Ethernet converters?
All industrial hardware engineered and supplied by DeviceLab carries an official 12 to 24-month manufacturer warranty, featuring 1-to-1 immediate replacement within the first 30 days in case of manufacturer hardware defects.
