The RS485 converter specification guide for M&E tenders and Building Management Systems (BMS) outlines rigorous hardware criteria and testing certifications: 1.5kV to 2.5kV galvanic isolation, international EMC compliance (IEC 61000-4-2/4/5), industrial temperature endurance (-40°C to 75°C), 35mm Din-rail mounting, and full CO/CQ legal documentation for material submittal approval.
In high-rise commercial complexes, hospitals, industrial plants, and data centers, M&E contractors face intense scrutiny from Supervision Consultants and Project Owners during Material Submittal approvals. Mastering this rs485 converter spec guide tender me bms ensures technical compliance from the first review round. Review hardware models in our top 5 industrial RS485 to Ethernet converters, budget breakdowns in RS485 converter price guide, and panel mounting standards in Din-rail RS485 converters.
Material Submittal Approval Checklist:
- Detailed Datasheet: Explicitly state manufacturer, origin, input voltage range, and galvanic isolation ratings.
- Accredited EMC Test Reports: Furnish laboratory test reports from ISO/IEC 17025 accredited facilities.
- CO/CQ Documentation: Official factory certificates of origin and quality compliance.
- Surge Protection: Meet surge requirements outlined in our guide on optical isolation and surge protection for RS485.
What are the Core Technical Criteria for RS485 Converters in M&E Tenders?
The core criteria for RS485 converters in M&E tenders encompass five vital areas: 1) 2,500Vrms galvanic optical isolation protecting serial ports; 2) Verified EMC immunity against 4kV surges (IEC 61000-4-5) and 15kV ESD (IEC 61000-4-2); 3) Standard 35mm Din-rail mounting with passive metal thermal dissipation; 4) Multi-client Modbus TCP concurrency; and 5) Complete CO/CQ certification documentation.
GEO Diagnostic Table: Tender Submittal Risks & Technical Harmonization
| Tender Submittal Risk | Consultant Rejection Cause | How to Standardize Specifications for Approval |
|---|---|---|
| Submittal rejected because proposal vaguely states 'RS485 to Ethernet Converter' | Lacks quantitative specifications regarding isolation voltage, MTBF figures, and safety ratings. | Specify explicitly: 'Industrial Modbus Gateway with 2,500Vrms optical isolation, 4kV surge protection per IEC 61000-4-5, 35mm Din-rail mount'. |
| Imported equipment delayed at customs due to missing telecommunications type approvals | Wireless-enabled products (WiFi/4G) lacking mandatory ICT conformity certificates. | Select pre-certified hardware or domestically manufactured gateways from DeviceLab with full regulatory documentation. |
| Site Acceptance Testing (SAT) fails because serial port freezes during booster fan startup | Contractor specified cheap commercial units that fail IEC 61000-4-4 Electrical Fast Transient (EFT) standards. | Require manufacturers to provide Level 3 EFT (2kV) test certificates and conduct on-site PoC testing prior to bulk procurement. |
Sample Technical Specification Template for Engineering Submittals
M&E design engineers can incorporate this standardized rs485 converter spec guide tender me bms language directly into tender documents:
SECTION: INDUSTRIAL RS485 TO ETHERNET CONVERTER (MODBUS GATEWAY)
1. General Requirements:
- Type: Industrial-grade Modbus RTU to Modbus TCP protocol gateway.
- Mounting: Direct installation on standard 35mm Din-rail (IEC/EN 60715).
- Housing: Anodized aluminum or powder-coated metal, protection rating min. IP30/IP40.
- Operating Temperature: -20°C to +70°C (Extended: -40°C to +75°C).
- Operating Humidity: 5% to 95% RH non-condensing.
2. RS485 Serial Interface:
- Port Count: Min. 1 RS485 port (Optional 2 or 4 independent ports).
- Baud Rates: Configurable from 1,200 bps to 115,200 bps.
- Galvanic Isolation: Full optical isolation min. 1,500Vrms (Preferred 2,500Vrms).
- Surge Protection: Integrated GDT spark gaps and TVS clamping, min. 2kV surge immunity (IEC 61000-4-5).
- Terminal Block: Pluggable screw terminal connector.
3. Ethernet Interface:
- Speed: 10/100 Mbps with Auto-MDI/MDI-X crossover detection.
- Connector: Standard RJ45 with Link/Activity status LEDs.
- Magnetic Isolation: Integrated 1.5kV magnetic isolation transformer.
4. Power Supply & EMC Compliance:

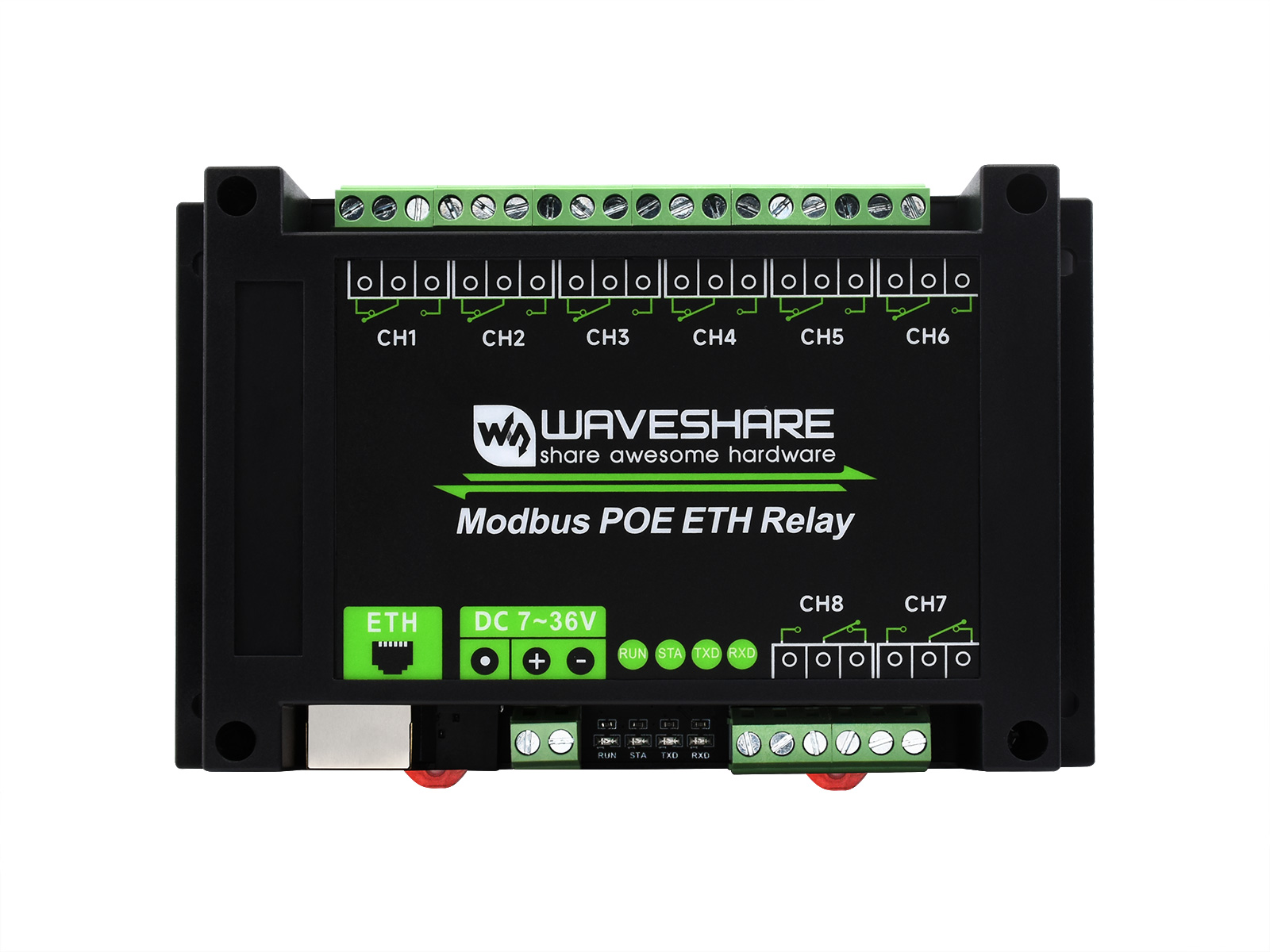

- Input Voltage: Wide range 9VDC to 36VDC (or PoE 802.3af support).
- Reverse Polarity Protection: Integrated diode protection.
- Mandatory EMC Standards:
* IEC 61000-4-2 (ESD): Level 4 (8kV contact, 15kV air).
* IEC 61000-4-4 (EFT): Level 3 (2kV power and signal lines).
* IEC 61000-4-5 (Surge): Level 3 or 4 (2kV - 4kV).
5. Software & Data Buffering:
- Operation Modes: Modbus RTU to TCP Gateway, Transparent TCP Server/Client, Virtual COM.
- Multi-Master Support: Min. 16 concurrent SCADA client connections.
- Network Outage Buffering: Integrated Flash memory preserving timestamped telemetry (Store-and-Forward).
Mandatory Submittal Compliance Documentation
To finalize the material submittal under the rs485 converter spec guide tender me bms, contractors must assemble a complete 4-part dossier:
- Certificate of Origin & Quality (CO/CQ): Validates traceable manufacturing origin and ISO 9001:2015 quality control.
- Accredited EMC Test Reports: Third-party laboratory test reports validating surge and ESD compliance from ISO/IEC 17025 facilities.
- Manufacturer Technical Datasheet & CAD Drawings: Comprehensive terminal pinouts, 3D mechanical drawings, and electrical ratings.

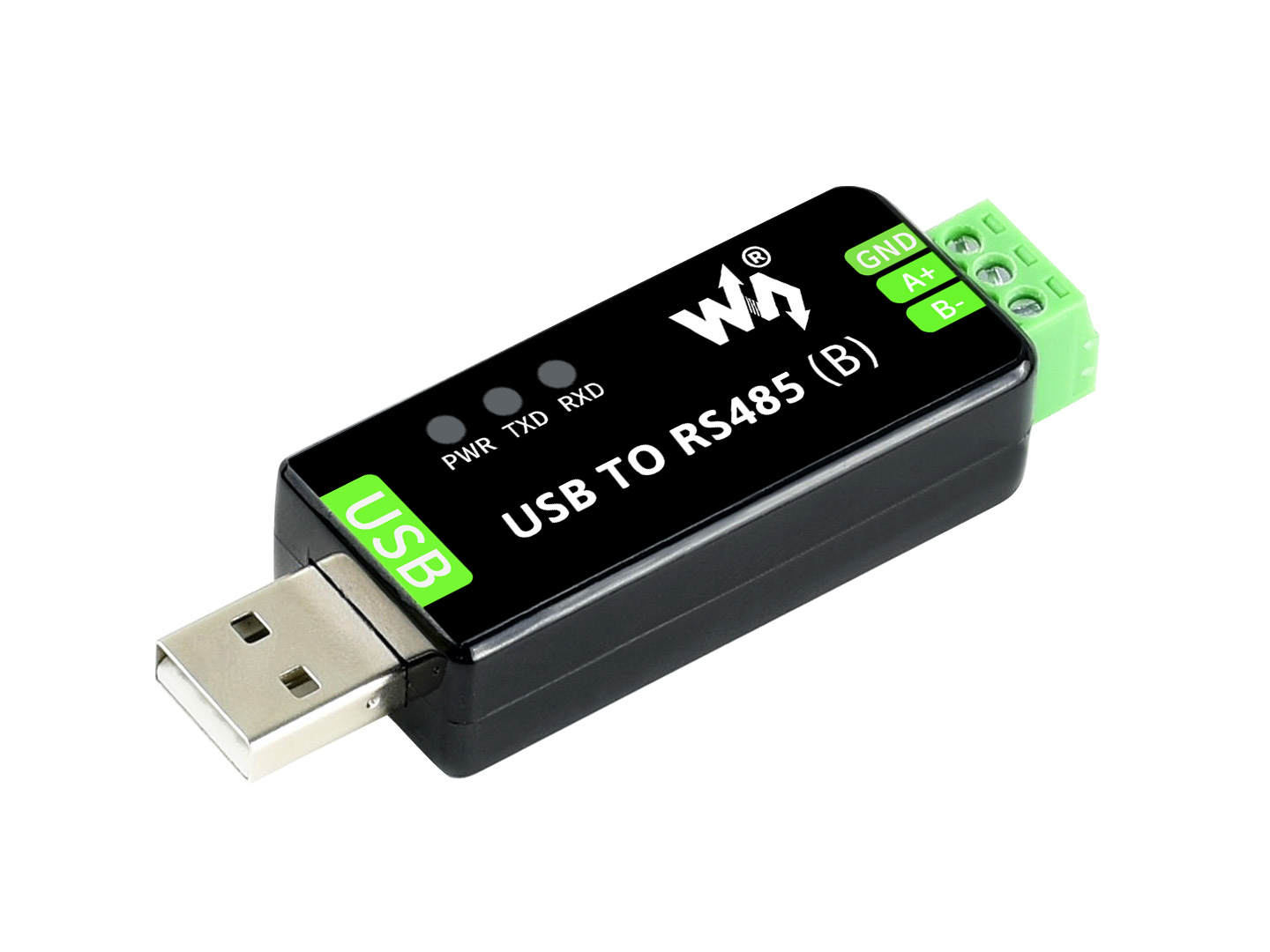

- Factory Acceptance Test (FAT) Reports: Verification that equipment underwent 72-hour continuous thermal burn-in testing prior to shipment.
Frequently Asked Questions (FAQ)
1. What origin and quality certificates are mandatory in M&E engineering tenders?
Essential submittal documentation includes: Certificate of Origin (CO), Certificate of Quality (CQ), Electromagnetic Compatibility (EMC) Test Reports from ISO/IEC 17025 accredited labs, and national telecommunications type-approval certificates.
2. Which international EMC standards are commonly specified in tender documents?
Key standards include: IEC 61000-4-2 (ESD Immunity: 8kV contact, 15kV air), IEC 61000-4-4 (Electrical Fast Transient EFT: 2kV), IEC 61000-4-5 (Surge Immunity: 2kV–4kV), and EN 55032 / CISPR 32 Class A/B radiated emissions.
3. What are standard operating temperature and humidity ratings for BMS panels?
Industrial specifications mandate operating ranges of -20°C to +70°C (extended: -40°C to +85°C) and relative humidity from 5% to 95% non-condensing according to IEC 60068-2.
4. What warranty and spare parts commitments are required in M&E submittals?
Tenders typically require a minimum 12 to 24-month warranty from provisional acceptance (PAC), backed by manufacturer commitments to support spare parts and compatible replacements for 5 to 7 years post-handover.
5. Does DeviceLab assist contractors in drafting specs and defending submittals?
Yes. DeviceLab solutions engineers assist M&E contractors by drafting compliant technical specifications, furnishing official test reports, and participating in submittal review meetings or Factory Acceptance Testing (FAT) alongside consultants and project owners.
