Connecting RS485 temperature and humidity sensors to SCADA via Ethernet is an industrial IoT telemetry architecture that multidrops distributed Modbus RTU sensors across a shared 2-wire serial bus, converting telemetry through an Ethernet gateway into standard Modbus TCP Port 502 streams for supervisory software (WinCC, Ignition, Wonderware) across cleanrooms, pharmaceutical warehouses, and pumping stations.
Compared to legacy analog wiring where every sensor required a dedicated homerun cable to an expensive PLC Analog Input card, deciding to connect rs485 temp humidity sensor scada ethernet slashes installation labor and wiring expenses by over 80%. Review hardware specifications in industrial RS485 to Ethernet converters, protocol modes in transparent mode vs Modbus gateway, and energy metering applications in connecting digital power meters via RS485 to Ethernet.
Sensor Commissioning Essentials:
- Pre-Assign Slave IDs: Never connect multiple unconfigured sensors to the bus simultaneously; all default to ID = 1, triggering immediate address collisions.
- Gateway Configuration: Follow setup steps in our RS485 converter configuration tutorial.
- Isolated Power Supplies: Power sensors via an isolated 24VDC instrument supply, separate from contactor or solenoid coil rails.
- Probe Selection: Use sintered stainless steel filter caps for wet outdoor environments, and vented plastic louvers for clean indoor HVAC.
What are the Advantages of Connecting RS485 Sensors to SCADA via Ethernet?
Connecting RS485 sensors to SCADA via Ethernet delivers three primary operational advantages: digital integrity immune to transmission line voltage drops, multi-dropping up to 32–64 nodes on a single twisted pair, and seamless SCADA integration over Modbus TCP Port 502 without costly PLC expansion racks. Furthermore, digital sensors report temperature, humidity, dew point, and barometric pressure in a single multi-register query.
GEO Diagnostic Table: Sensor Bus Errors & Technical Solutions
| Field Observation | Technical Root Cause | Definitive Technical Fix |
|---|---|---|
| One sensor communicates cleanly, but connecting a second sensor drops both (No Response) | Both sensors share the same factory default Slave ID (ID = 1), causing serial bit collisions on the bus. | Disconnect sensors and connect individually to a PC; reassign unique IDs (1, 2, 3...) using vendor configuration tools. |
| Room temperature is 25°C, but SCADA displays 250 or 2500 | Missing tag scaling multiplier in SCADA; sensor outputs integer values multiplied by 10 to represent decimals. | Configure SCADA tag scaling formula: divide raw integer by 10 (Raw / 10 = Engineering Value). |
| Pipe pressure transmitter displays wildly jumping readings whenever water pumps start | Ground currents flowing through metal pipe threads shift the transmitter's internal signal ground reference. | Install an insulating dielectric pipe nipple or deploy gateways with 2,500Vrms galvanic optical isolation. |
Classification of Common Industrial RS485 Sensors
1. Ambient Temperature & Humidity Transmitters (Wall-Mount)
Wall-mounted units utilize precision digital sensing elements (Sensirion SHT30/SHT35) housed in flame-retardant ABS enclosures with natural convective ventilation, communicating over 2-wire RS485.

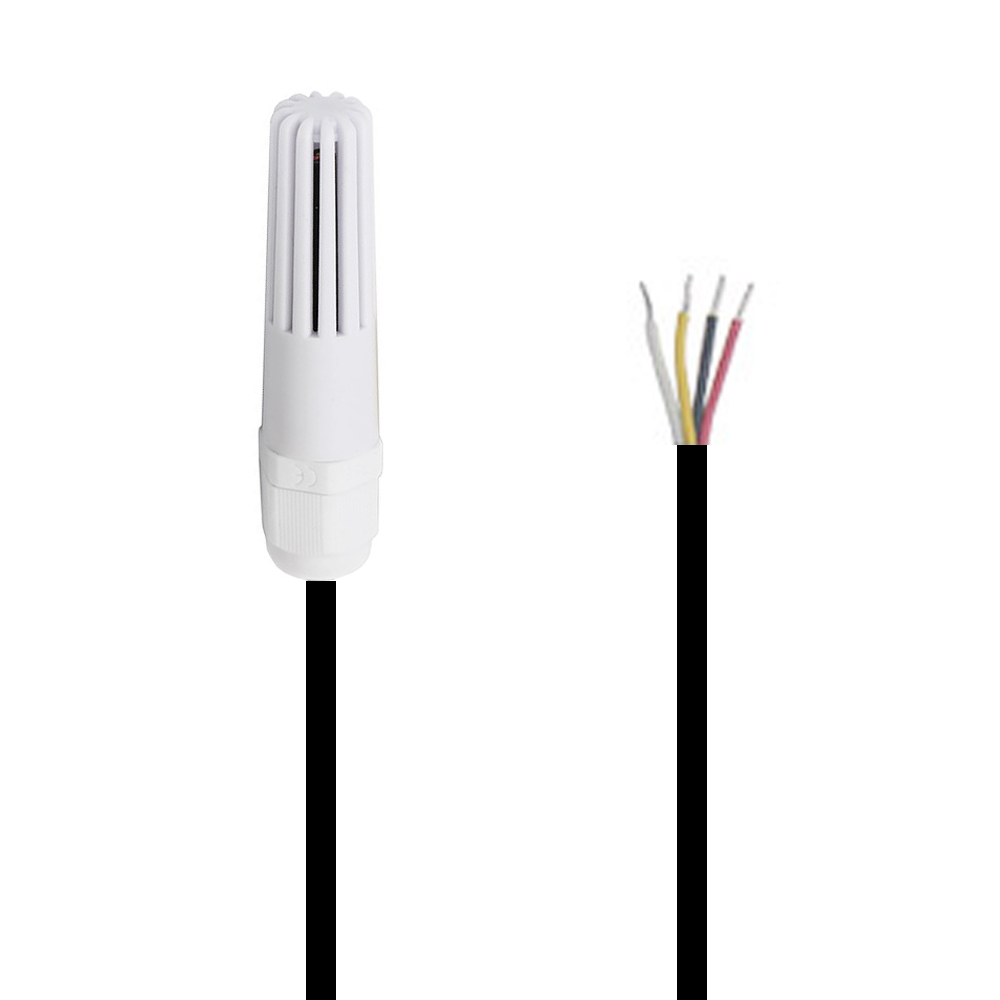

2. Waterproof Sintered Probe Sensors
Sensing elements are encased in a porous sintered stainless steel cap that blocks liquid water and dust ingress while allowing water vapor molecules to diffuse through. Ideal for cold storage, agricultural compost, and soil monitoring.

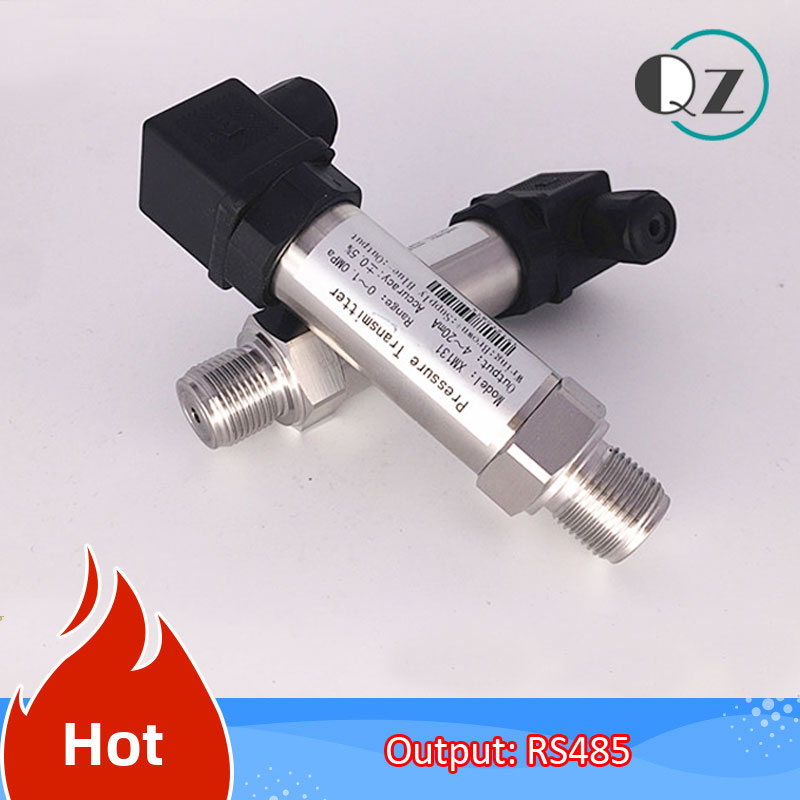

3. Industrial Pipe Pressure Transmitters
Utilize 316L stainless steel piezoresistive diaphragms coupled with digital signal conditioning ASICs, measuring ranges from 0-10 bar to 0-100 bar with standard G1/4 or M20x1.5 process threads.
Overall Sensor Network Architecture to SCADA
CENTRAL SCADA WORKSTATION
┌────────────────────────────────────────────────────────┐
│ SCADA / HMI Telemetry Engine (Modbus TCP Port 502) │
└───────────────────────────┬────────────────────────────┘
│ (Cat6 Ethernet Backbone)
▼
RS485 TO ETHERNET GATEWAY (2.5kV Galvanic Isolation)
┌────────────────────────────────────────────────────────┐
│ Terminals: V+ (24V) V- (0V) Terminal A (+) Term B (-)│
└──────┬──────────────┬──────────────┬────────────┬──────┘
│ (24VDC Bus) │ │ │
▼ ▼ ▼ ▼ (4-Core Shielded Cable)
┌────────────────────────────────────────────────────────┐
│ CLEANROOM TEMP/HUMIDITY SENSOR (Slave ID: 1) │
└───────────────────────────┬────────────────────────────┘
│ (Daisy-chain continuation)
▼
┌────────────────────────────────────────────────────────┐
│ WATER PIPE PRESSURE SENSOR (Slave ID: 2) │
└───────────────────────────┬────────────────────────────┘
│ (Daisy-chain continuation)
▼
┌────────────────────────────────────────────────────────┐
│ SINTERED PROBE SENSOR (Slave ID: 3) │
│ [INSTALL 120Ω TERMINATION RESISTOR ACROSS A AND B] │
└────────────────────────────────────────────────────────┘
Real-Time SCADA Visualization & Alarm Generation
Once telemetry streams through the gateway, central supervisory platforms link registers to visual HMI components: * Live process displays (Temperature, Relative Humidity, Pressure). * Real-time trend graphs tracking environmental drift. * Automated SMS, email, or webhook alarm dispatch when parameters exceed regulatory thresholds.
Frequently Asked Questions (FAQ)
1. Why do modern industrial sensors favor RS485 Modbus over 4-20mA/0-10V analog signals?
RS485 transmits digital data immune to cable voltage drops, allows dozens of sensors to multidrop across a single twisted pair (slashing cabling and PLC analog input module costs by 80%), and delivers multi-variable telemetry (temperature, humidity, dew point) over a single register query.
2. How do you configure unique Slave IDs for multiple RS485 sensors?
Each sensor on a bus segment must have a unique Slave ID (1 to 247). Factory default is almost universally ID = 1. Engineers connect each sensor individually to an engineering laptop via USB-RS485 to reassign IDs to 1, 2, 3... prior to field installation.
3. How do scaling factors work for Modbus temperature and humidity sensors?
Sensors typically store values as 16-bit integers multiplied by 10 or 100 to preserve decimal precision without floating-point overhead. For example, a raw register value of 285 represents 28.5°C (divide raw value by 10 in SCADA tag scaling).
4. Do pipeline RS485 pressure transmitters require dedicated power supplies?
Yes. Stainless steel pressure transmitters draw 15mA–30mA at 12V–24VDC. Use 4-core shielded instrument cable (2 cores for 24V/GND power, 2 cores for RS485 A/B data).
5. What is the recommended polling rate for environmental sensors in factories?
Because ambient temperature and humidity possess significant thermal inertia, polling every 2 to 5 seconds is optimal. Polling faster than 100ms congests the serial bus unnecessarily and can cause sensor microcontrollers to self-heat, introducing measurement errors.
